Spools and risers
About the product

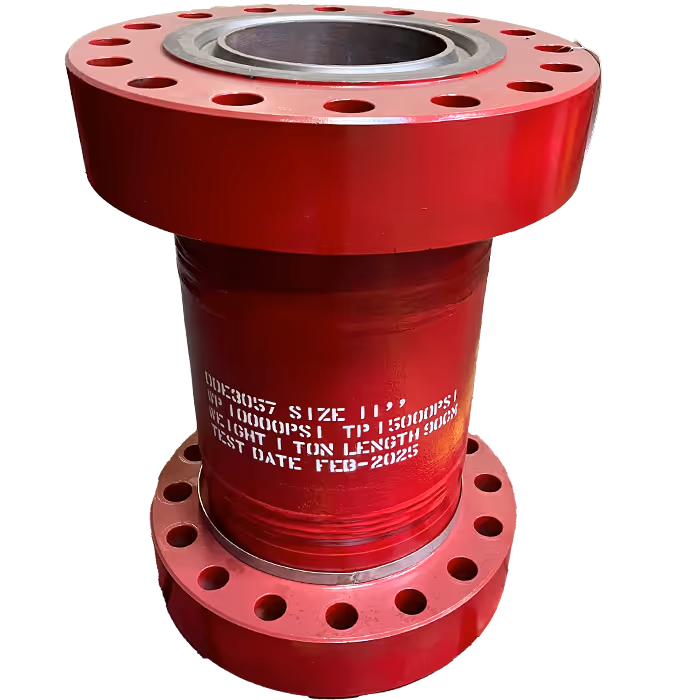

Spools and risers form the connecting link between different components within a wellhead or pressure line system. They extend the well structure, create space for valves or measuring equipment and ensure safe transmission of pressure or media.
Deep Drill supplies spools and risers in various sizes, heights and configurations, tailored to your installation and operational requirements. Our products can be used in geothermal energy, oil and gas extraction, CO₂ storage and salt extraction, and are supplied with flange connections, test ports and optional feed-throughs.
Spools and risers are available separately or as part of a composite stack. You can buy or rent them, depending on the application.
Technical specifications
- Type: drilling spools, spacer spools and riser extensions
- Sizes: according to API 6A or customer specification
- Pressure rating: up to 10,000 PSI
- Height: standard or custom
- Connections: flange connection or studded, clamped, hubbed Designs with API profile, manufactured according to API 16A
- Optional: test and vent ports, connections for measuring instruments
Quality and certification
- Manufactured according to API 16A
- Pressure tested and visually inspected
- Supplied with certificates, material lists and traceable serial numbers
- Compatible with OEM systems and Deep Drill stacks
Interested?
Are you looking for a spool or riser for your setup? Contact us for dimensions, delivery times or integration into your existing configuration.
FAQ section.
What is the difference between a spool and a riser?
A spool is usually a short connector with flanges or stud ends to create space between components. A riser is an extension that connects the wellhead to equipment on the surface or to the next pressure stage.
What are spools and risers used for?
They are used to create space for valves, measuring equipment or torque tools, and to connect components across different heights or pressure zones.
Are spools and risers available for hire and purchase?
Yes, both options are available. Hiring is an attractive option for temporary setups or tests. Buying is the best solution for permanent integration into your drilling or production installation.
Are custom dimensions possible?
Certainly. We supply standard sizes, but also custom lengths and connection types based on your installation diagram.
What is included in the delivery?
Depending on the application, we supply the spool or riser including flange connections, seals, test ports and documentation.
