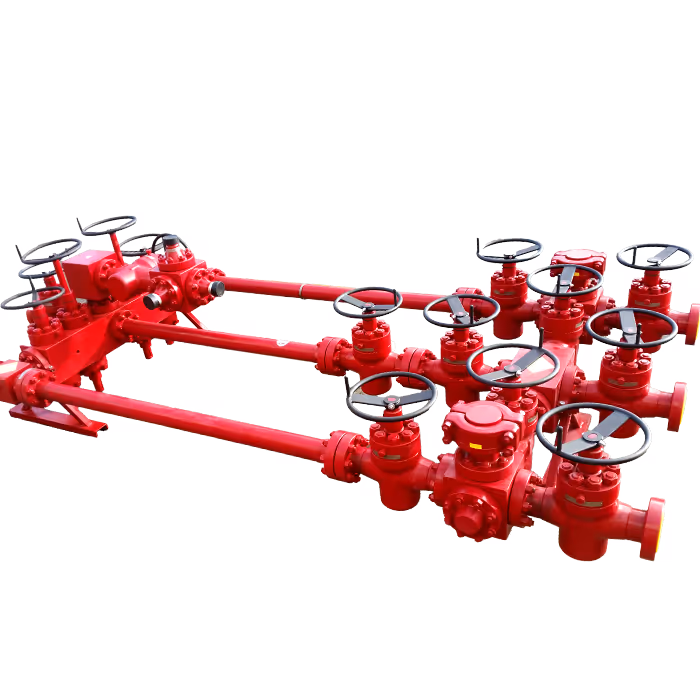

Choke manifolds
About the product
Choke manifolds are crucial for controlled pressure relief during drilling and testing of the well. They ensure that drilling fluid can flow out of the well in a controlled manner, relieving pressure without the risk of blowouts.
Deep Drill supplies robust, configurable choke manifolds that can be used in high-pressure environments such as geothermal, oil and gas drilling and injection wells. Our manifolds are available in various pressure classes and layouts, with adjustable chokes, shut-off valves and measuring instrumentation.
We supply both standalone units and integrated systems, tailored to your operational requirements and in accordance with applicable standards.
Technical specifications
- Pressure class: 5,000 PSI and 10,000 PSI
- Configuration: 3-way or 4-way choke manifold
- Components: adjustable and fixed chokes, gate valves, pressure gauges
- Connections: flanged/studded (various sizes available)
- Housing: corrosion-resistant steel with protective coating
- Includes: test certificates, manuals and optional bypass lines
Quality and certification
- According to API 16D and CE marked
- Factory tests and optional FAT documentation
- Full test certification included
- Traceable parts and maintenance information
Interested?
Looking for a choke manifold that fits your operational configuration? Contact our team for advice or a customised solution.
FAQ section.
What does a choke manifold do?
A choke manifold regulates the outflow of drilling fluid under pressure. By adjusting the choke, the pressure is controlled without losing control of the well.
What applications are choke manifolds suitable for
They are used in drilling, well testing and production phases, particularly in situations where pressure regulation and safety are paramount. Examples include geothermal energy, oil and gas extraction and CO₂ storage.
Do you also supply customised configurations?
Yes, we supply both standard manifolds and customised setups tailored to specific requirements. We take into account flow rate, pressure class, connections and desired instrumentation.
Is it possible to rent, even for longer periods?
Absolutely. Many of our customers hire choke manifolds for the entire duration of their project. You don't have to worry about maintenance or storage, and you get a fully tested system that is ready for use.
Can you also install and test the manifold on site?
Certainly. If desired, our experienced technicians can take care of installation, pressure testing and instruction on site. Everything for safe and trouble-free operation.
