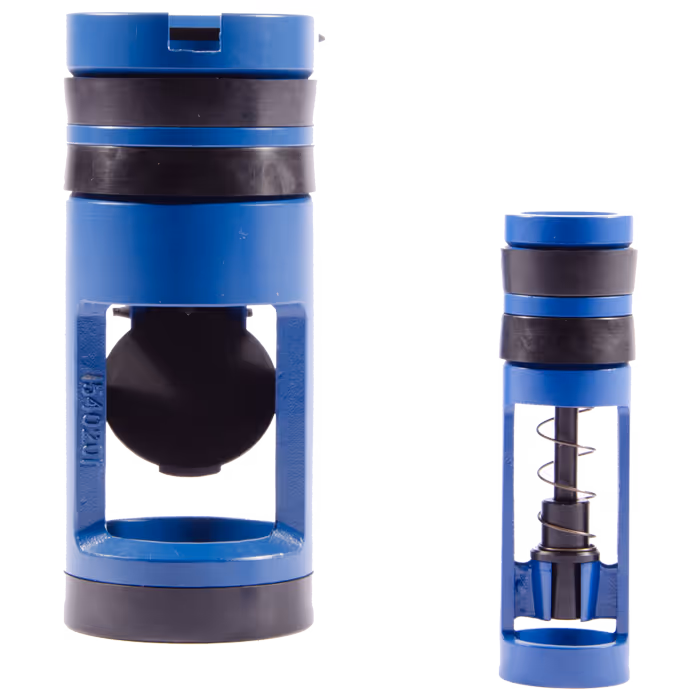

Float valves
About the product
Float valves are placed in the drill string to prevent backflow of drilling fluid and pressure waves towards the surface. They act as a non-return valve and protect the interior of the string during circulation or in the event of a kick.
Deep Drill supplies various types of float valves, tailored to your drilling conditions and desired flow characteristics. Our valves are suitable for high pressures, speeds and chemically aggressive drilling fluids.
Float valves are available for hire and sale and are supplied with test certificates.
Technical specifications
- Sizes: 2 3/8" to 6 5/8"
- Type: Type F (full bore), Type G (spring-loaded, low restriction), others on request
- Working pressure: up to 7,500 PSI
- Material: corrosion-resistant steel with rubber or composite seal
- Optional: visual inspection, caps and documentation per batch
Quality and certification
- Manufactured according to API 7-1 and OEM specifications
- Functionally tested for closure and pressure resistance
- Supplied with serial number, batch information and inspection report
Interested?
Are you looking for a reliable float valve for your drill string or test rig? Contact our team, we will be happy to advise you.
FAQ section.
What exactly does a float valve do?
A float valve prevents fluid or pressure from flowing back into the string from the borehole. It is an essential safety component in any drilling operation.
What types of float valves do you supply?
We supply Type F (full open) and Type G (spring-loaded, low pressure drop), tailored to your circulation conditions. Other variants are available on request.
Are float valves available for hire and for sale?
Yes. We supply them for temporary use or as a permanent part of your drill string.
For what types of projects can these products be used?
Float valves are used in geothermal energy, oil and gas drilling, injection wells and anywhere where pressure backflow or backflow poses a risk.
Do you also supply accessories or fasteners
Certainly. We supply caps, inserts and fasteners for correct storage, assembly or temporary sealing.
